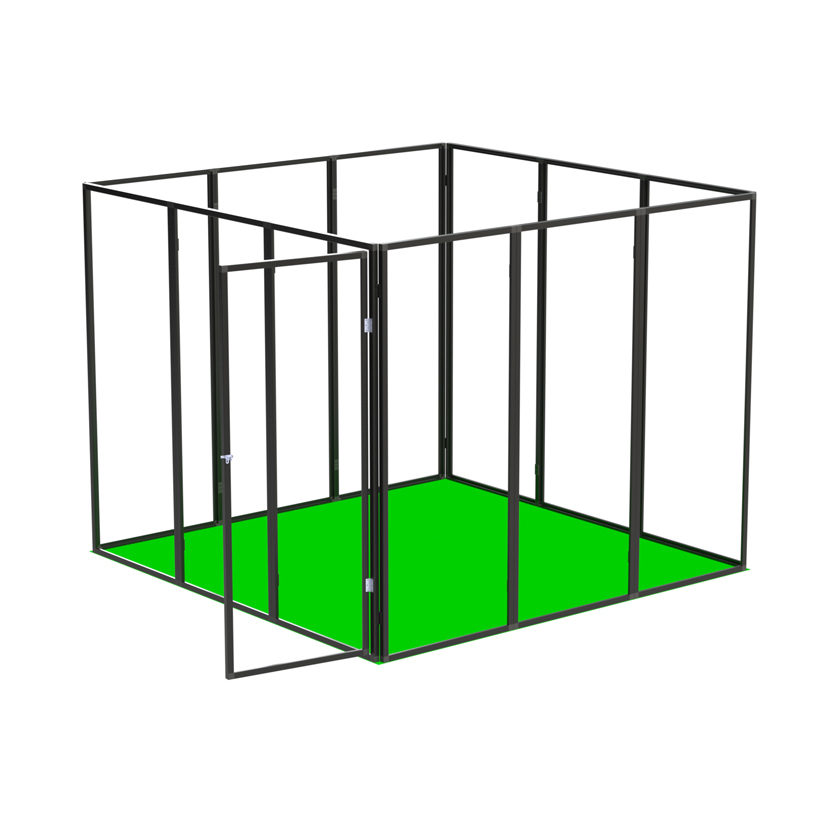

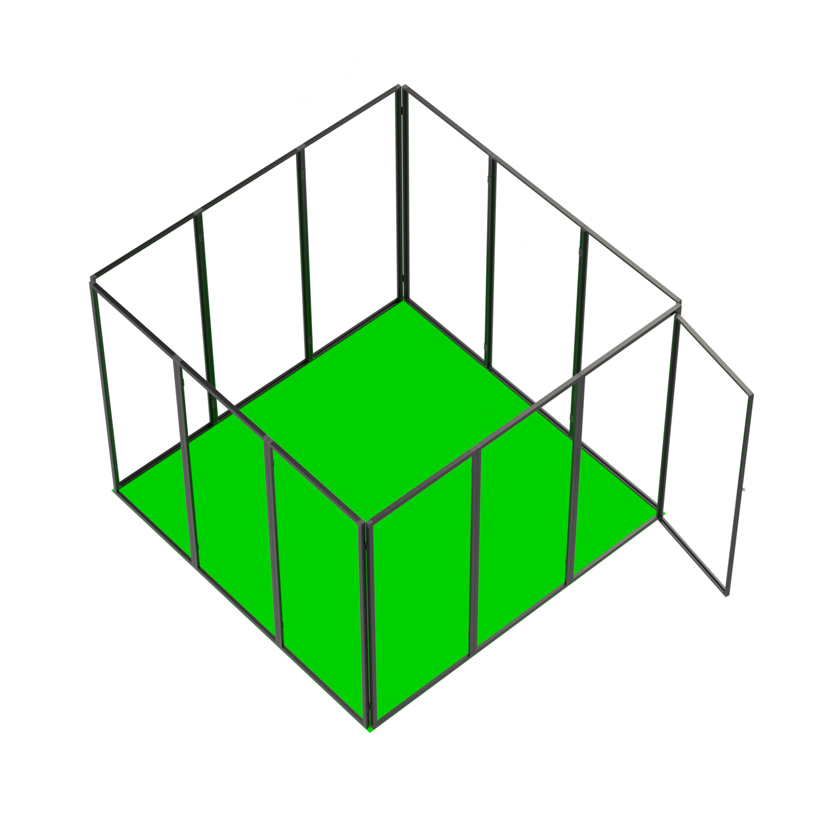

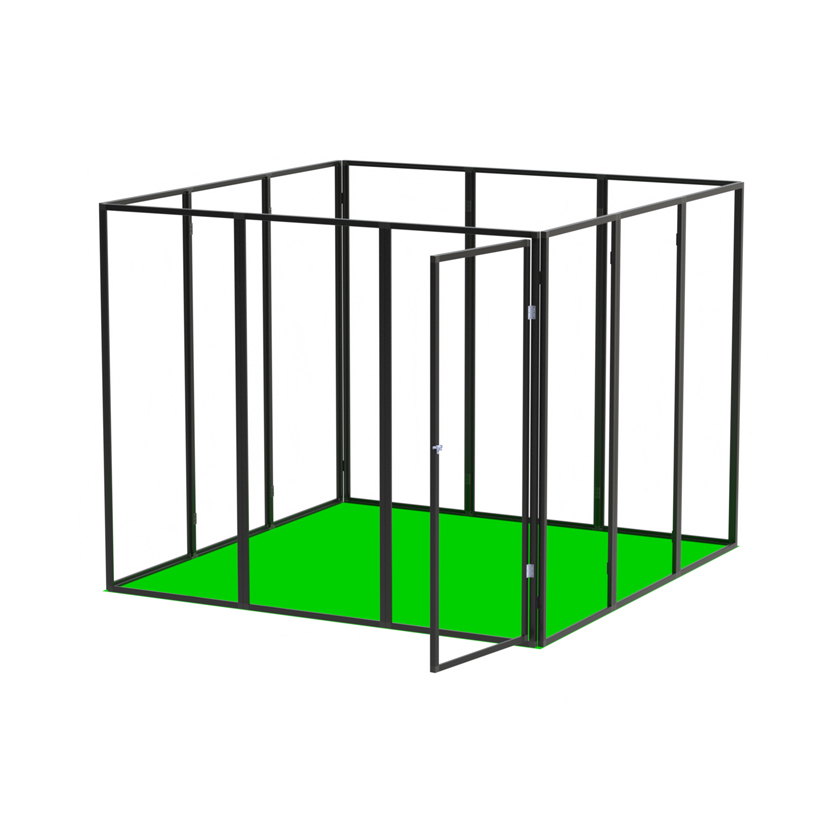

Trade Show Booth - Three Sided Wall
| Material | Aluminum Nylon |
| SKU | TSBU1010WD |
Tradeshow Booths can be assembled, disassembled, and customized according to your taste.
Made from Moxitec's aluminum extrusions and connectors, you’re Tradeshow booth will be portable, light weight and easy to set up. After building your Tradeshow booth frame from Moxitec parts, add your graphics, lighting, and anything else you need to make it fit you desired look! For all companies large or small, Moxitec makes your setup easy and completely customizable.
Our Tradeshow booths are easy and fast to assemble. They require no welding or mitering. Since the assembly is lightweight and portable, it is suited perfectly for mobile use. A Moxitec Tradeshow booth can also be reconfigured for future events.
With Moxitec, building your own Tradeshow booth is easier than ever. You can pick from one of our standard options or ask our sales team to help you create something from scratch. We can help create a CAD design with parts list that you can order from online or ask our team to custom cut your frames to the exact dimensions before it ships.
1. Cut tubing to size with a miter or chop saw (non-ferrous blade)
2. Insert 2-way connector joint using a rubber mallet
3. Measure inside opening of L tube and subtract an ⅛” for height and width for panel size
4. Cut acrylic panel to size
5. Install 5/8” Velcro to the frame and around the perimeter of the acrylic (You can also use self-drilling and tapping screws
5. Insert acrylic panel in opening

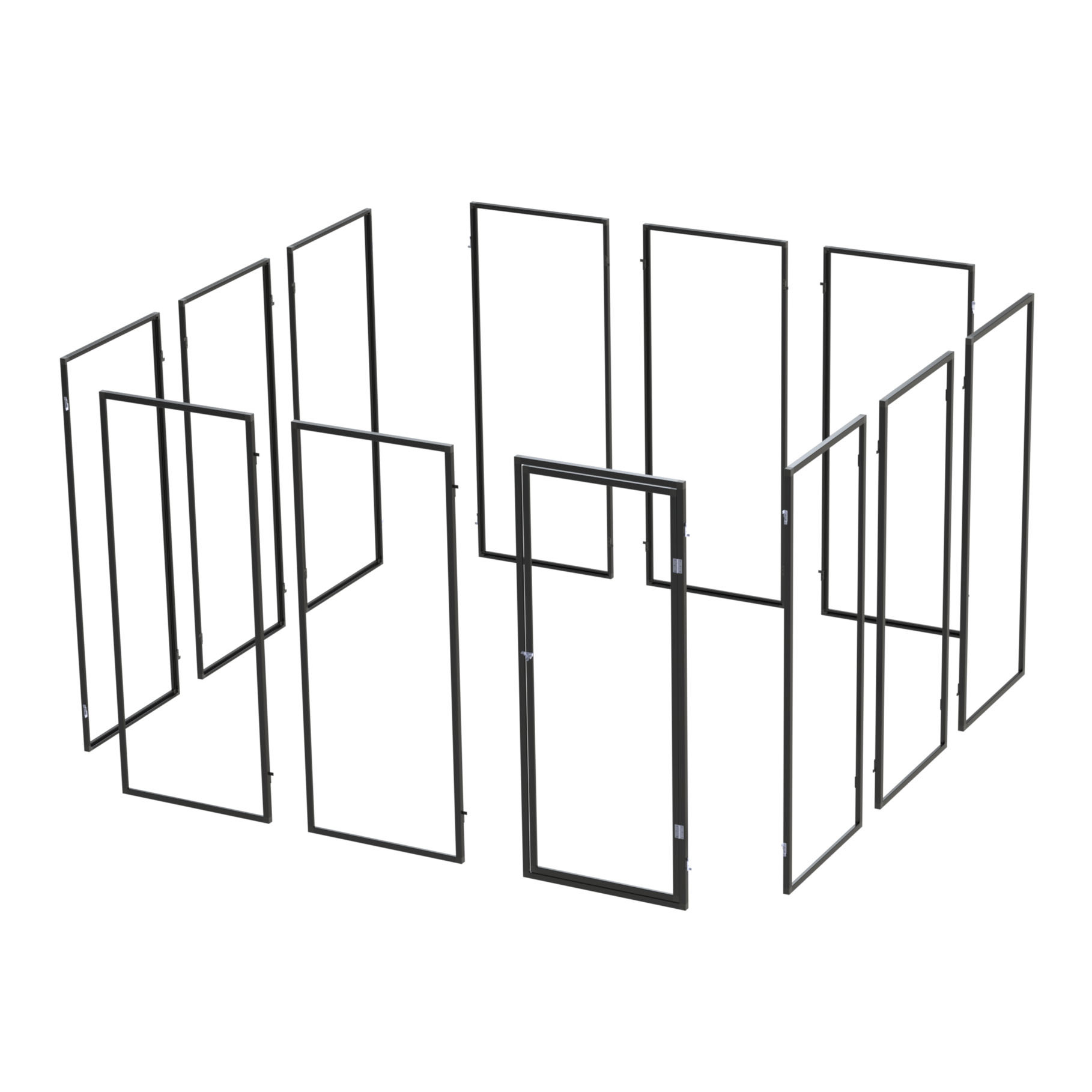

6. Attach multiple frames together with Bear Clips or U Clips.
7. Install frame stands to the bottom to hold your frame upright. We offer a variety of frame stands to help support your frame.
